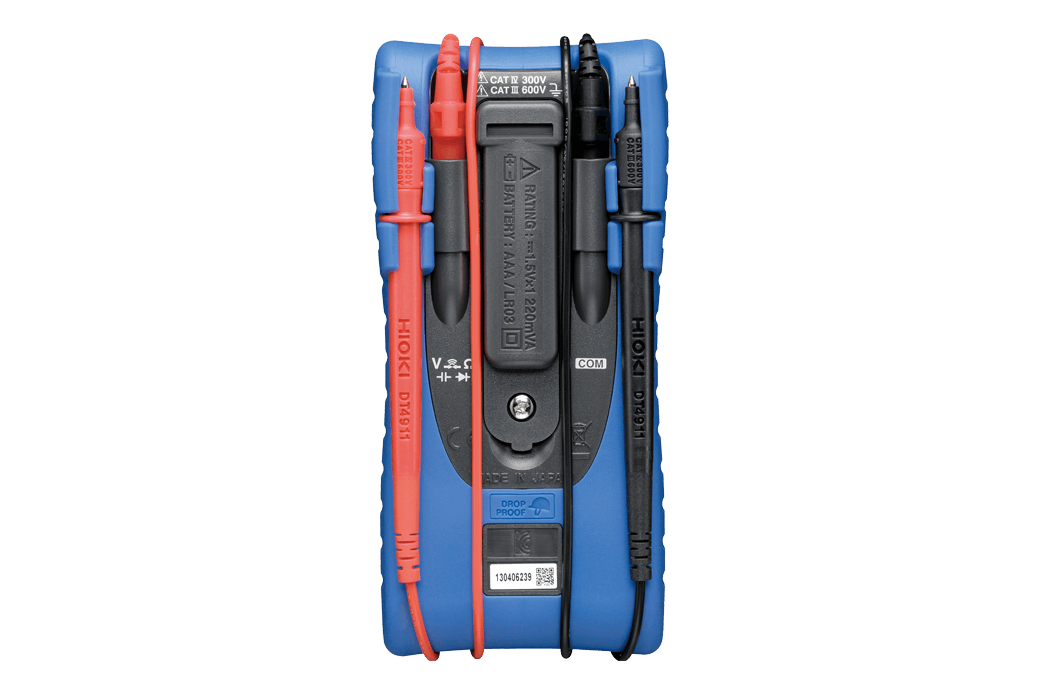

DIGITAL MULTIMETER DT4223,DT4224
Basic specifications
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
| DC Voltage range | 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt. | |||||
|---|---|---|---|---|---|---|
| AC Voltage range | 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3) |
|||||
| Resistance range | 600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt. |
|||||
| Capacitance range | N/A | |||||
| Frequency range | AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt. |
|||||
| Continuity check | Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more | |||||
| Diode test | N/A | |||||
| Voltage detection | 80 V to 600 V AC | |||||
| Other functions | Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save | |||||
| Display | Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph | |||||
| Display refresh rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s ) | |||||
| Power supply | LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF) | |||||
| Dimensions and mass | 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster) | |||||
| Included accessories | Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1 | |||||
