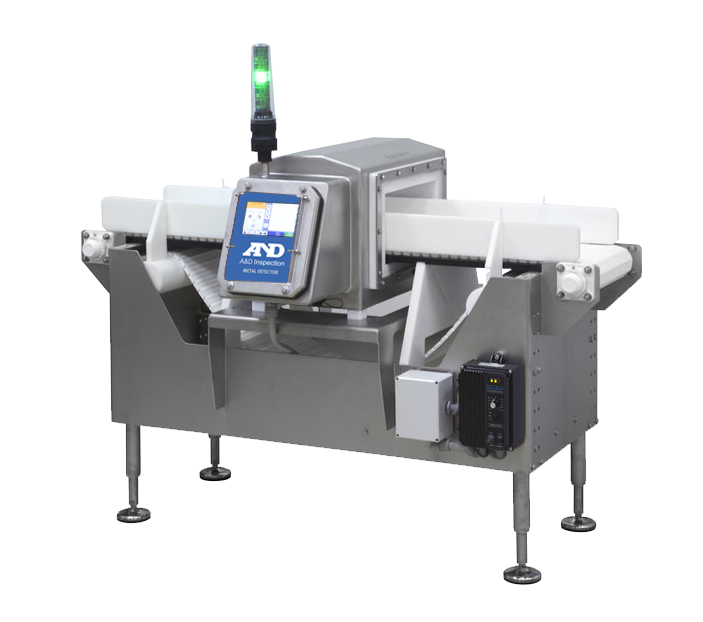

Heavy Duty Metal Detectors AD-4971-IP69K Series
Standard Features
- NEMA Type 4X, 304 stainless steel housing and enclosure
- IP69 rated (IP69K optional)
- 7-inch, color touchscreen
- USB and Ethernet connectivity
- LED display communication tower
- Audible alarm
- Single-point junction box
- Antistatic UHMW slider bed
- Variable speed, modular belt (up to 240ft/min (73m/min) depending on configuration)
- Adjustable foot pads or casters
- Voltage requirements: 100 to 240VAC, 50 or 60Hz
- 9 programmable outputs (for rejects, faults, warnings, etc.)
- 8 configurable inputs (for photo eyes, reject systems, etc.) that can be set to active high or active low
- Operating ambient temperature range: Integral Control 14° F (-10°C) to 120°F (49°C) Remote Control 14°F (-10°C) to 130°F (54°C)
- Storage temperature: 14°F (-10°C) to 175°F (80°C) » Maximum operating altitude: 6,561feet (2,000meters)
Connectivity
Transfer data to and from the control panel via USB or Ethernet connection. Covered ports remain watertight and protected during cleaning.
Food Grade Wash Down Design:
- All 304 stainless with sanitary welds
- Quickly disassembled for routine cleaning
- Shielded, scratch-resistant touchscreen
- Modular, variable-speed belting removes easily for cleaning
