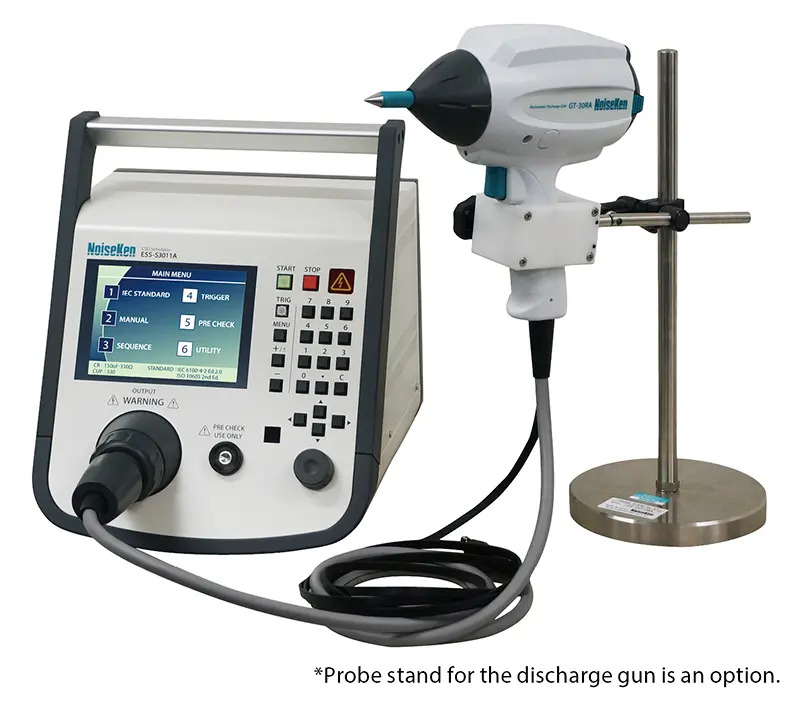

ESD SimulatorESS-S3011A & GT-30RA
Specifications
| Parameter | Specification | |
|---|---|---|
| Polarity | Positive / Negative | |
| Output voltage | 0.20 kV ～ 30.0 kV ± 5% (30.5 kV max) *0.20kV〜1.99kV ±10% 2.00kV〜30.0kV ±5% ～ 10.0 kV : 0.01 kV step ～ 30.0 kV : 0.1 kV step |
|
| Repetition cycle | 0.05s ～ 600s ±10% / Manual Set step : 0.01s (0.05 ～ 9.99s), 0.10s (10.0 ～ 600.0s) |
|
| Discharge number of times | 1 ～ 60,000 times, Preset 1 time step or continuous preset | |
| Discharge mode | Contact discharge / Air discharge | |
| Radiation level mode | NORMAL mode / EXTRA mode | |
| Trigger mode | Gun trigger / Main trigger / External trigger | |
| Operation panel | Color LCD / Push-buttons (Partially lighting) | |
| Gun holder | Standard attached (to hold the discharge gun Model GT-30RA) | |
| Radiation mode select switch | Extra / Normal switching function built-in | |
| Discharge detection | Discharge detection function in air-discharge equipped | |
| Pre-checking function | Following 3 steps function equipped (by user operation. Not the calibration but just checking) STEP1 : High voltage output checking STEP2 : Withstanding voltage checking STEP3 : Discharge relay operation checking |
|
| CR & Gun head checking | CR constant and gun head recognizable (indication to prevent a wrong combination) |
|
| "IEC STANDARD" test mode |
Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps |
|
| "MANUAL" test mode |
Contact / Air discharge mode, Arbitrary setting 0.2 kV ～ 30.0 kV Sweeping function built-in, Recordable up to 99 units |
|
| "SEQUENCE" test mode |
Enables to operate units set in MANUAL mode continuously. Max. 22 steps / 1 program and the programs recordable up to 20. |
|
| Warning lamp | Lighting at voltage output from the generator. Blinking at electro-static discharging |
|
| Charge capacitor / resistor | 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA) | |
| Charge resistor in generator | 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)* | |
| AUX connector | D-SUB 15 pins female connector (for connecting to patolight, automated ESD eliminator, external interlock input, external trigger input terminal) |
|
| Optical communication | Optical connector (serial interface) for connecting to PC connector | |
| Power supply / consumption | AC100 V ～ AC240 V 50 Hz / 60 Hz ±10% 75VA | |
| Dimensions | Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included) Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm |
|
| Weight | Generator : approx. 7.5 kg (with Gun Holder) Discharge gun : approx. 800 g (cable and connector excluded) |
* The constant depends on combination with CR unit for the discharge gun
■ Details of GT-30RA discharge gun: Discharge gun (with discharge cup 330 Ω test), CR unit 06-00073B (150 pF – 330 Ω), discharge tips ( conical / round)
