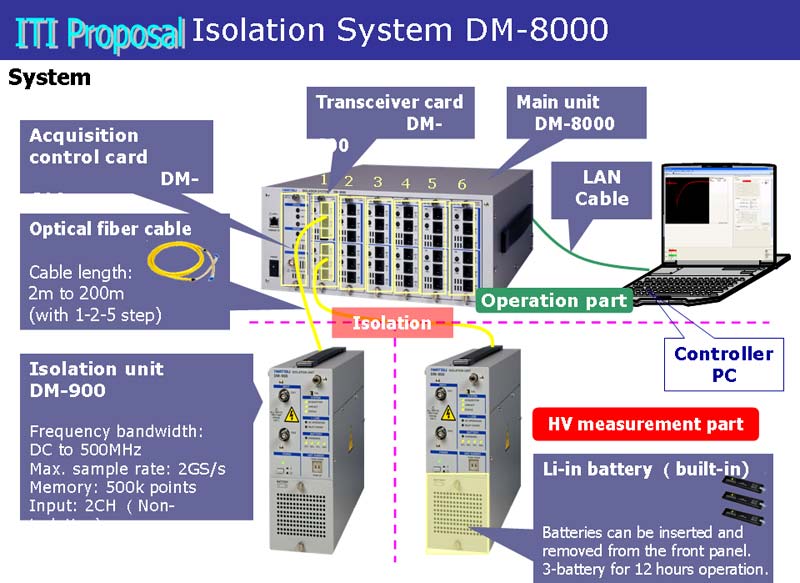

Isolation SystemDM-8000H
Specification:-
DM-8000H Main Unit
*When the DM-610A acquisition control card is mounted
|
Item |
DM-8000H |
Transceiver card connection
|
Number of slots |
6(Max.12 isolation units and/or acquisition units can be connected.) |
Time axis
|
Sweep range |
1 ns/div to 20 s/div |
|
Clock accuracy |
10 ppm |
|
Acquisition mode |
Normal/peak |
Trigger system
|
Trigger operation mode |
Auto, Normal, Single, Stop |
|
Trigger source |
Up to 24 channels |
|
Trigger type |
Edge or pulse width |
|
Trigger delay |
Available |
Interface
|
Ethernet port |
3 port (10BASE-T/100BASE-TX/1000BASE-T) |
Power supply unit
|
AC power |
100 V to 240 V (50/60 Hz) |
|
|
Power consumption |
130 VA max |
|
Mechanical unit
|
Dimensions and weight |
132 (H) x 351 (W) x 420 (D) mm, Approx. 6.9 kg |
|
Operating temperature |
0 to +40°C |
|
Performance guaranteed temperature |
+10 to +35°C |
Accessories
|
LAN cable |
1 |
|
Power supply cable |
1 |
|
Operating manual |
CD-R (1) |
|
Control software |
IS viewer DM-800 CD-R (1) |
