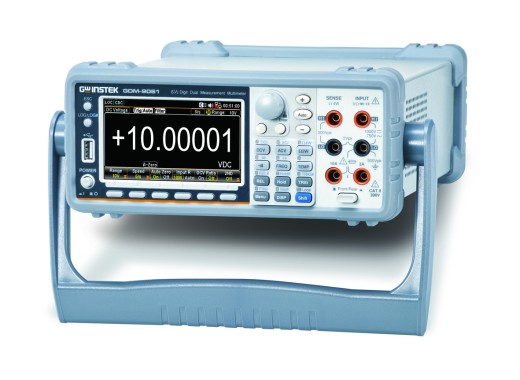

GW Instek GDM-9061 Digital multimeter

GW Instek GDM-9061 Digital multimeter

Specifications

Measurements
Mode Range Basic precision Minimum Resolution
Max. DC Voltage 1000 V ±(0.0035 + 0.0005) 0.1 μV
Max. DC Current 10 A ±(0.05 + 0.005) 100 pA
Max. AC Voltage 750 V ±(0.06 + 0.04) 0.1 μV
Max. AC Current 10 A ±(0.30 + 0.04) 100 pA
Max. resistance 100 MΩ ±(0.010 + 0.001) 100 μΩ
Max. capacitance 100 μF ±(2 + 0.40) 0.001 nF
Frequency 3 Hz - 1 MHz ±(0.1)
Temperature -200 °C ~ +1820 °C ±(0.06 °C (typical)) 0.001 °C
Sampling rate 10k/sec
Memory 100k
Measurement functions DCV, ACV, DCI, ACI, 2-/4-wire resistance, frequency, period, diode, continuity, temperature, capacity
Math functions dB, dBm, Compare, MX+B, Percent, 1/X
Display 6 1/2 Digit Display - 1,200,000 counts
4.3" Color TFT (480 x 272)
Connectivity RS232C,USB Host/Device,Lan,Digital I/O
Dimensions 267(W) x 107(H) x 302(D) mm
Weight 3.5 kg

The GDM-9060 is the smaller brother of the GDM-9061. The GDM-9061 has a more precise basic accuracy, greater sampling rate and larger internal memory. The GDM-9061 can also measure up to 10A where the GDM-9060 can only measure up to 3A. The GDM-9060 is a lot cheaper.
The GDM-9060 can be found here.

Accessories

The GDM-9061 will be delivered with:

  • Safety instructions
  • Power cord
  • USB cable
  • Test probe (GTL-207A)
  • CD (user manual, upgrade program and PC software)
